Overview

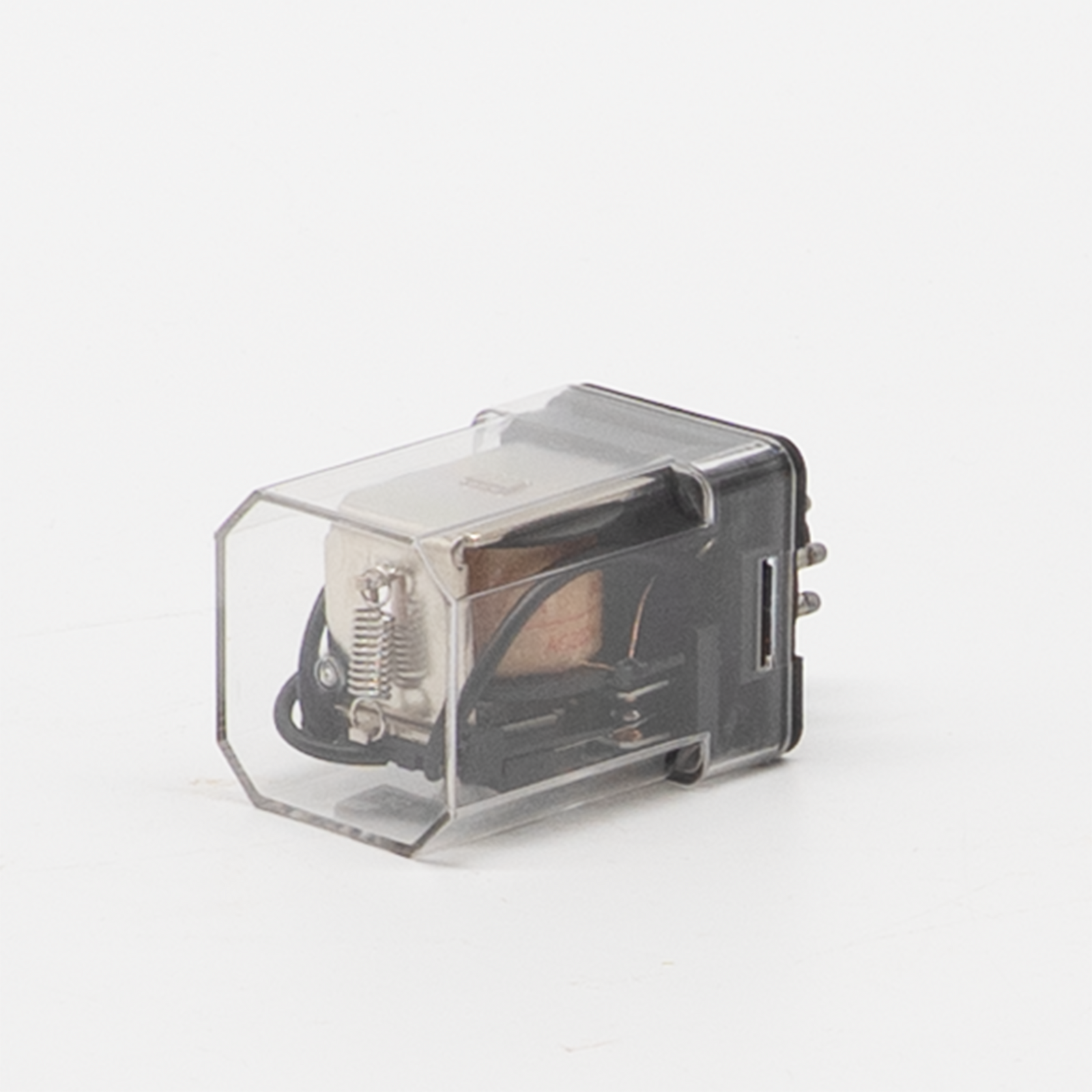

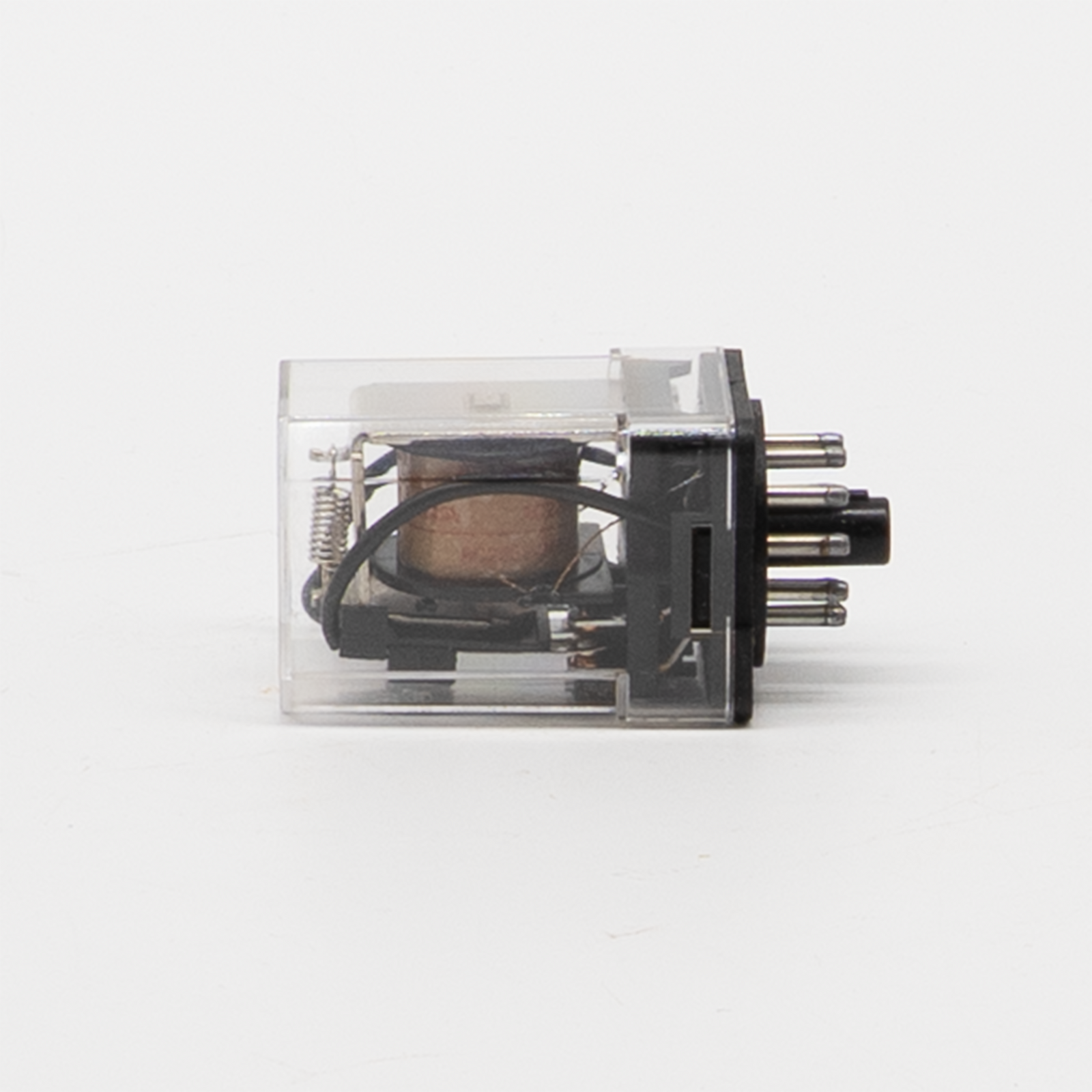

The JTX-3C is a durable industrial-grade electromagnetic relay featuring an 11-pin plug-in base, designed for reliable control of AC and DC loads in automation, machinery, and panel applications. With a 220VAC coil voltage and 3PDT (triple pole double throw) contact configuration, this relay is ideal for switching multiple circuits with precision. Its transparent housing allows visual monitoring of internal operation for diagnostics and status confirmation.

Key Features

• High Voltage Coil (220VAC)
  Operates with standard 220V AC control signals, ideal for integration in industrial panels with high-voltage logic.

• 3PDT Contact Configuration (3 Form C)
  Offers three independent switching circuits with both Normally Open (NO) and Normally Closed (NC) contacts for versatile applications.

• 11-Pin Plug-in Base
  Industry-standard 11-pin terminal layout for quick and secure socket mounting; compatible with most DIN rail or panel-mount relay sockets.

• Clear Protective Housing
  Transparent casing for visual inspection of coil and contact movement—improves safety, maintenance, and troubleshooting.

• Dual Load Capacity

  • AC Load: Up to 7.5A at 250VAC

  • DC Load: Up to 0.3A at 220VDC
    Designed for mixed-signal control environments requiring both AC and DC switching capabilities.

• Mechanical Durability
  Long-lasting coil and spring mechanism rated for thousands of operations in demanding environments.
