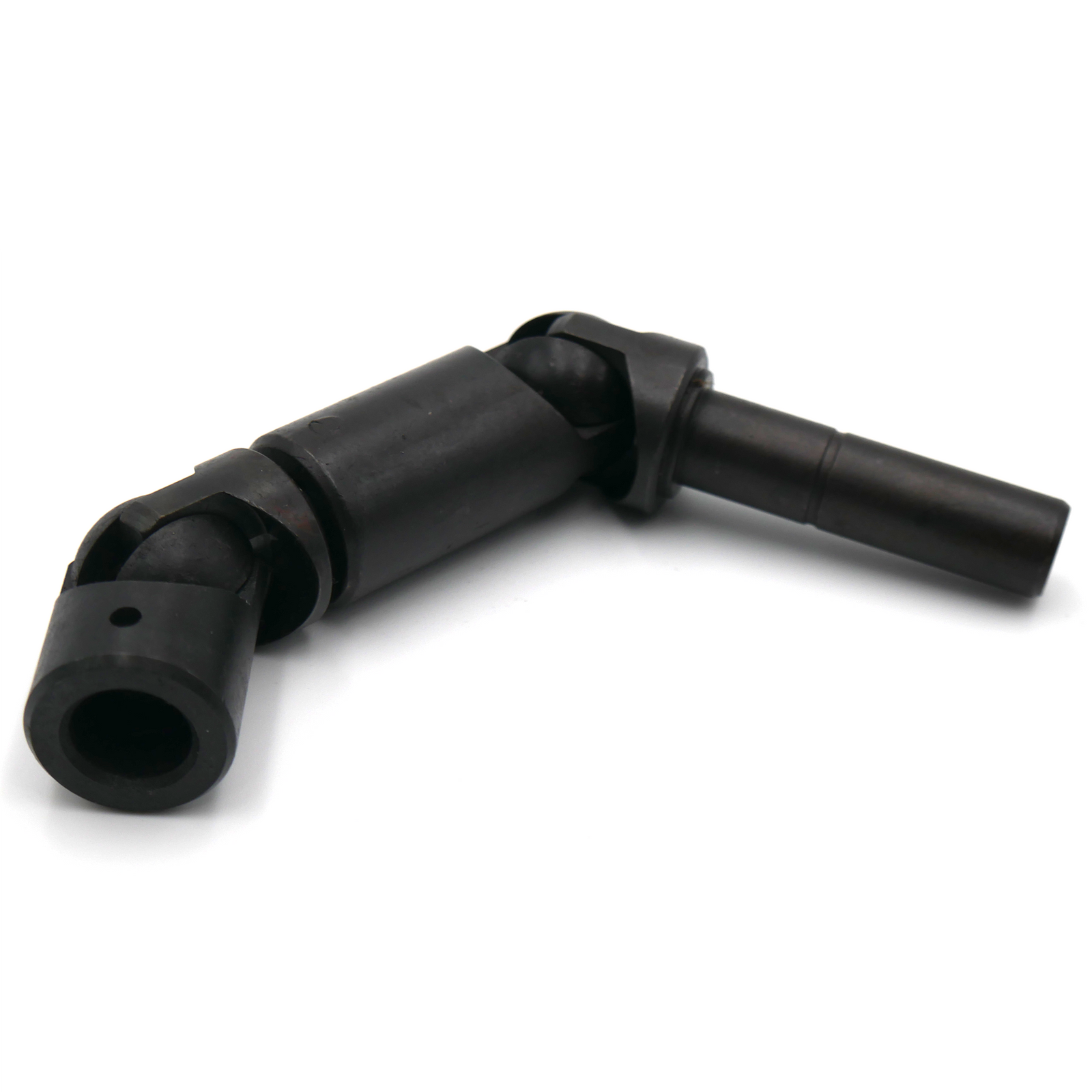

The Gimbals Coupling Assembly is a crucial mechanical component designed for the E-CBS-800 series case and box sealing systems. Engineered to transfer torque between misaligned shafts, this coupling enables efficient power transmission even when there is angular displacement between connected components.
Key Features
Dual-Universal Joint Design The assembly features a double universal joint (U-joint) configuration, enabling smooth rotational movement and compensation for misalignment in two planes. This ensures flexibility and consistency during high-speed operations.
High-Performance Material Constructed from durable, wear-resistant black polymer composite, the coupling offers exceptional resistance to fatigue and mechanical stress while maintaining a lightweight profile.
Precision Fitment The ends are precision-machined for a secure and stable fit with corresponding drive shafts, ensuring a vibration-free connection that preserves machine alignment and efficiency.
Applications
Specifically engineered for use within the E-CBS-800 Series of carton sealing and case taping machinery.
Commonly used to connect drive mechanisms or conveyance shafts that require flexibility without sacrificing torque transmission.
Installation & Maintenance
Installation: Easily integrated into the existing mechanical framework of the E-CBS-800. Ensure alignment before securing with fastening hardware.
Maintenance: Periodic inspection is recommended to check for signs of wear, especially at pivot joints. Lubrication is not required due to the self-lubricating material properties.
