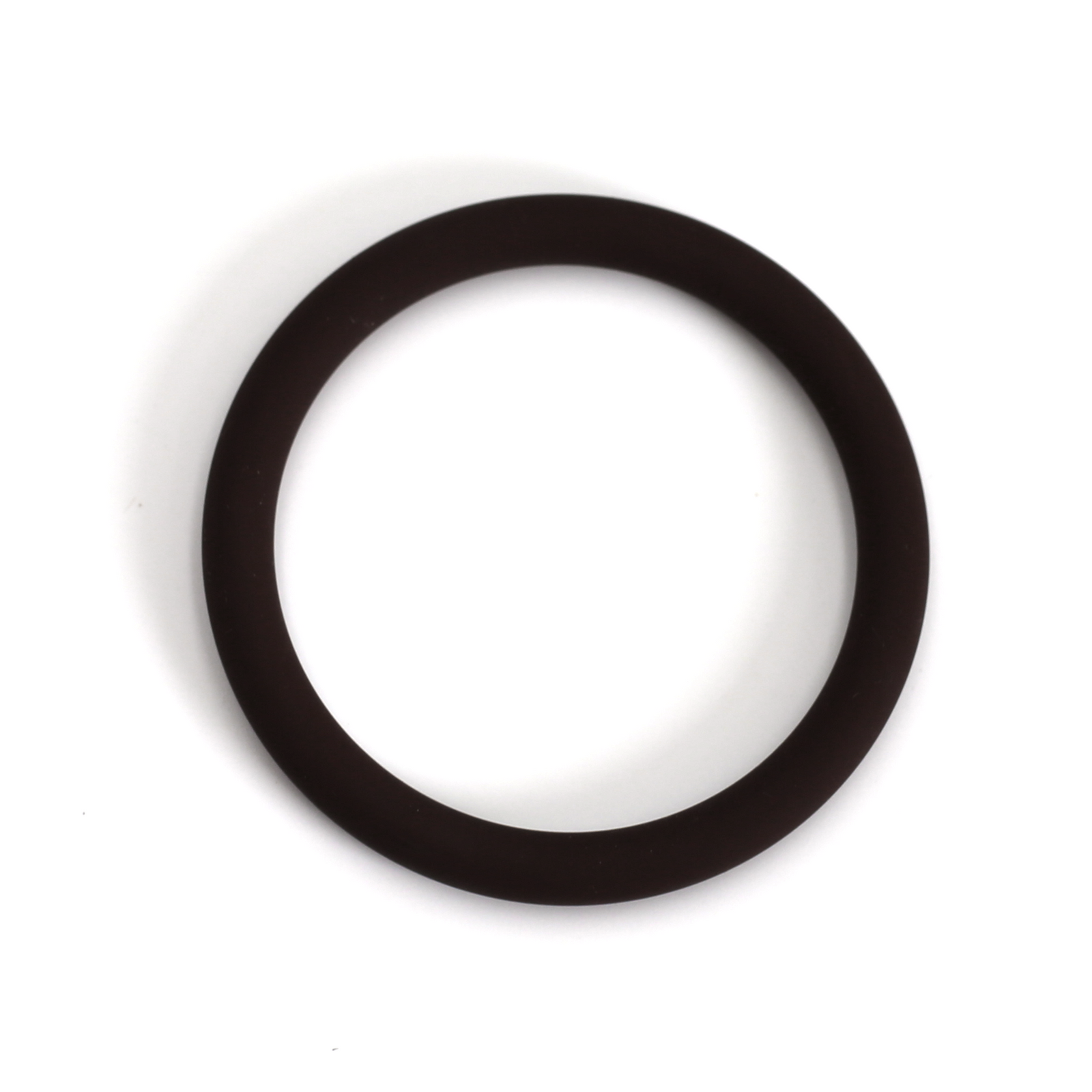

Overview: The FKM 75 O-Ring (3.1mm cross-section, 20mm internal diameter) is a precision-engineered elastomeric seal specifically designed for the nozzle tip assemblyof the Technopack E-FP-100-DXand E-FP-300-DXhigh viscosity piston fillers. This O-ring plays a vital role in maintaining sealing integrity between the nozzle tip and the fill head, preventing leaks, ensuring accurate dispensing, and supporting sanitary operation during high-viscosity product handling.
Key Features:
High-Performance FKM Material: Made from fluorocarbon rubber (FKM)with a 75 Shore A hardness, this O-ring is highly resistant to aggressive chemicals, oils, solvents, and high temperatures—making it ideal for environments where thick, complex formulations are dispensed.
Optimized for Small-Diameter Nozzle Tips: With its compact dimensions (3.1mm CS x 20mm ID), the O-ring is perfectly suited for the smaller nozzle tip interfaces of the E-FP-100-DX and E-FP-300-DX, forming a reliable seal without interfering with fluid dynamics.
Excellent Temperature & Chemical Resistance: Designed for durability and versatility, this O-ring operates in a wide thermal range of -20°C to +200°C, while resisting swelling or degradation from exposure to a variety of product ingredients and cleaning agents.
Leak Prevention & Dosing Precision: Provides a consistent and tight seal during each fill cycle, helping maintain clean dispensing by preventing seepage or dripping from the nozzle, while also supporting the volumetric accuracy of each dose.
Applications:
Compatible Equipment:
E-FP-100-DXHigh Viscosity Piston Filler
E-FP-300-DXHigh Viscosity Piston Filler
Use Location:
Positioned at the nozzle tip interface, this O-ring seals the connection between the nozzle and the main body of the dispensing head, particularly in applications with pressurized or viscous product flow.
