Overview:

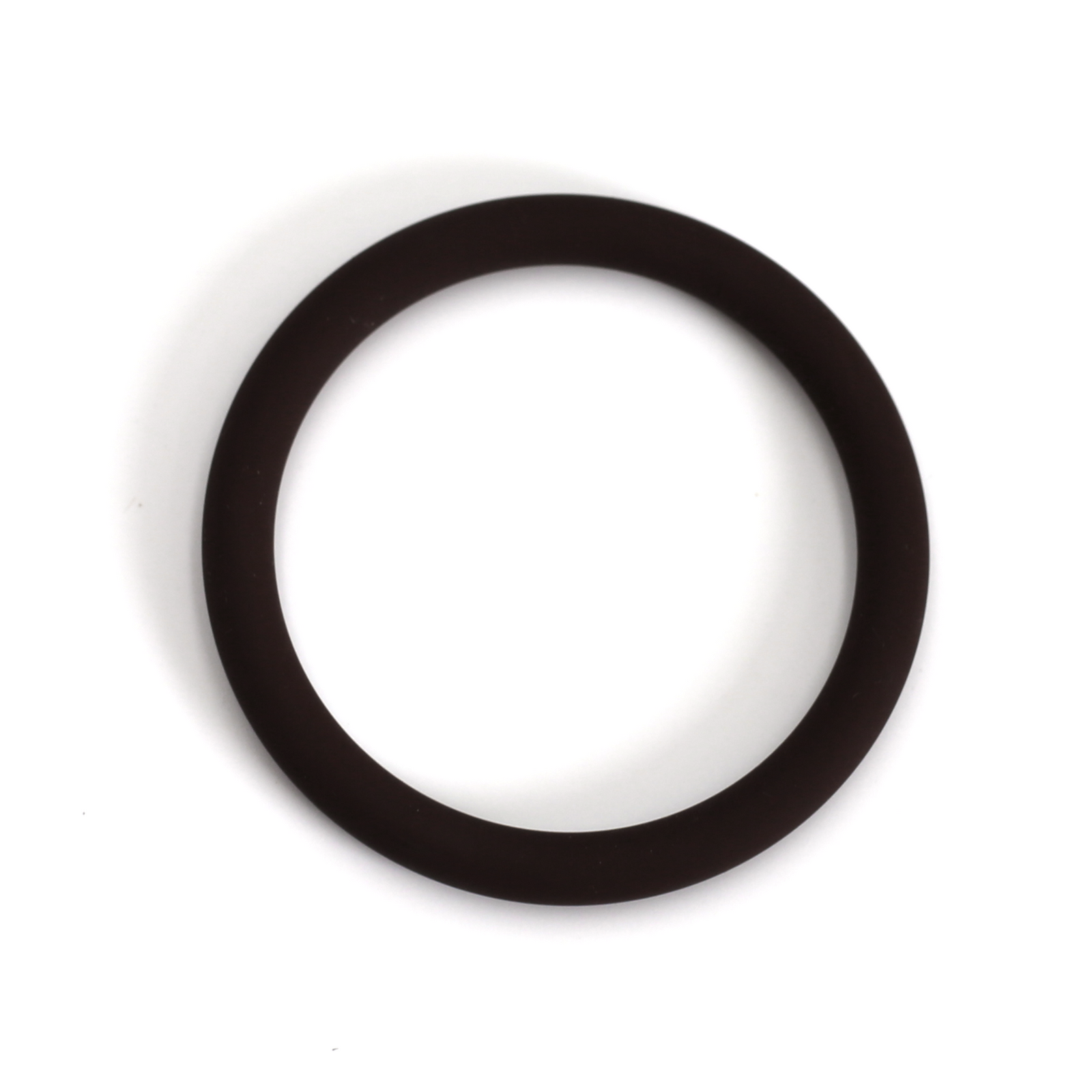

The FKM 75 O-Ring (2.4mm cross-section, 24mm internal diameter) is a high-precision sealing component designed specifically for the non-drip tip assembly of the Technopack E-FP-100-DX and E-FP-300-DX high viscosity piston fillers. It plays a crucial role in maintaining clean, accurate, and leak-free dispensing by forming a tight seal that supports the non-drip mechanism’s ability to prevent residual product from escaping after each fill cycle.

Key Features:

• Premium FKM (Fluorocarbon Rubber) Composition:
  Manufactured from FKM elastomer with a 75 Shore A hardness, this O-ring offers excellent resistance to chemicals, oils, and elevated temperatures—making it ideal for viscous formulations in demanding filling environments.

• Compact, High-Performance Seal:
  With a fine 2.4mm cross-section and 24mm internal diameter, this O-ring is designed for tight spaces and precision fit within the non-drip tip, ensuring optimal sealing without impeding flow control.

• Temperature & Chemical Stability:
  Performs reliably in environments ranging from -20°C to +200°C, and resists degradation in contact with acidic, oily, and organic media—essential for food-grade, cosmetic, and industrial applications.

• Supports Drip-Free Operation:
  Maintains positive seal contact within the non-drip tip housing to eliminate post-dispense dripping, helping ensure accurate dosing, minimize product waste, and maintain hygienic fill lines.

Applications:

• Compatible Equipment:

  • E-FP-100-DX High Viscosity Piston Filler

  • E-FP-300-DX High Viscosity Piston Filler

• Installation Location:

  • Seated in the non-drip nozzle tip assembly, this O-ring acts as a seal between static and moving parts that control the cutoff of product flow at the end of each dispensing stroke.

• Recommended for Use With:

  • Food: Syrups, dressings, creams

  • Cosmetics: Lotions, gels, balms

  • Industrial Products: Silicone pastes, adhesives, lubricants
