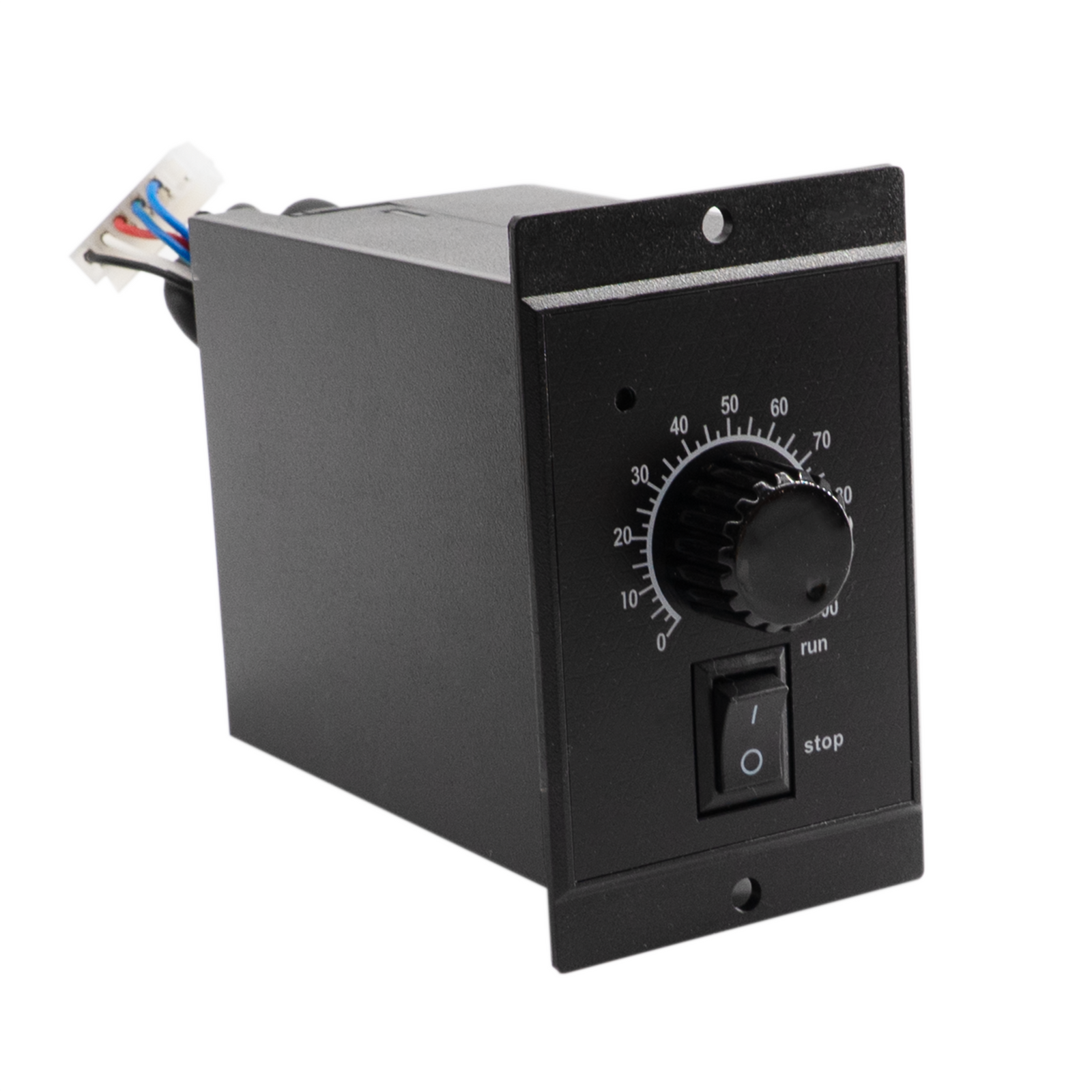

The Conveyor Speed Controller is a dedicated control module designed to manage conveyor belt speed in E-TUN-1230 shrink tunnel systems. Engineered for 90W DC gear motors, this controller ensures smooth, adjustable speed operation to accommodate varying product sizes and shrink film characteristics. With a rugged design and simple interface, it is a dependable choice for industrial shrink packaging lines.
Key Features
Precision Speed Control Large rotary dial with a 0–100 scale allows users to finely adjust conveyor speed for optimal shrink performance.
Integrated Power Switch Features a convenient ON/OFF rocker switch with “Run” and “Stop” markings, offering straightforward operational control.
Heavy-Duty Construction Sturdy metal housing with panel-mount design ensures long-lasting durability in production environments.
Pre-Wired Harness Comes with a pre-wired 5-pin harness with color-coded wires for easy and fast integration into the E-TUN-1230 system.
Optimized for 90W Motors Tuned specifically for use with 90W DC gear motors, providing consistent torque and speed regulation.
Technical Specifications
Rated Motor Power: 90W
Voltage Input: AC 220V
Output: Variable DC voltage (for 90W motor control)
Speed Adjustment Range: Analog 0–100 scale
Control Method: Potentiometer + on/off switch
Mounting Type: Panel-mounted with faceplate
Wiring Interface: 6-pin connector with ~300mm lead
Applications
Perfectly suited for:
Shrink Packaging Lines using the E-TUN-1230 tunnel
Packaging food, beverages, pharmaceuticals, electronics, and more
Environments needing precise conveyor speed for consistent heat application
