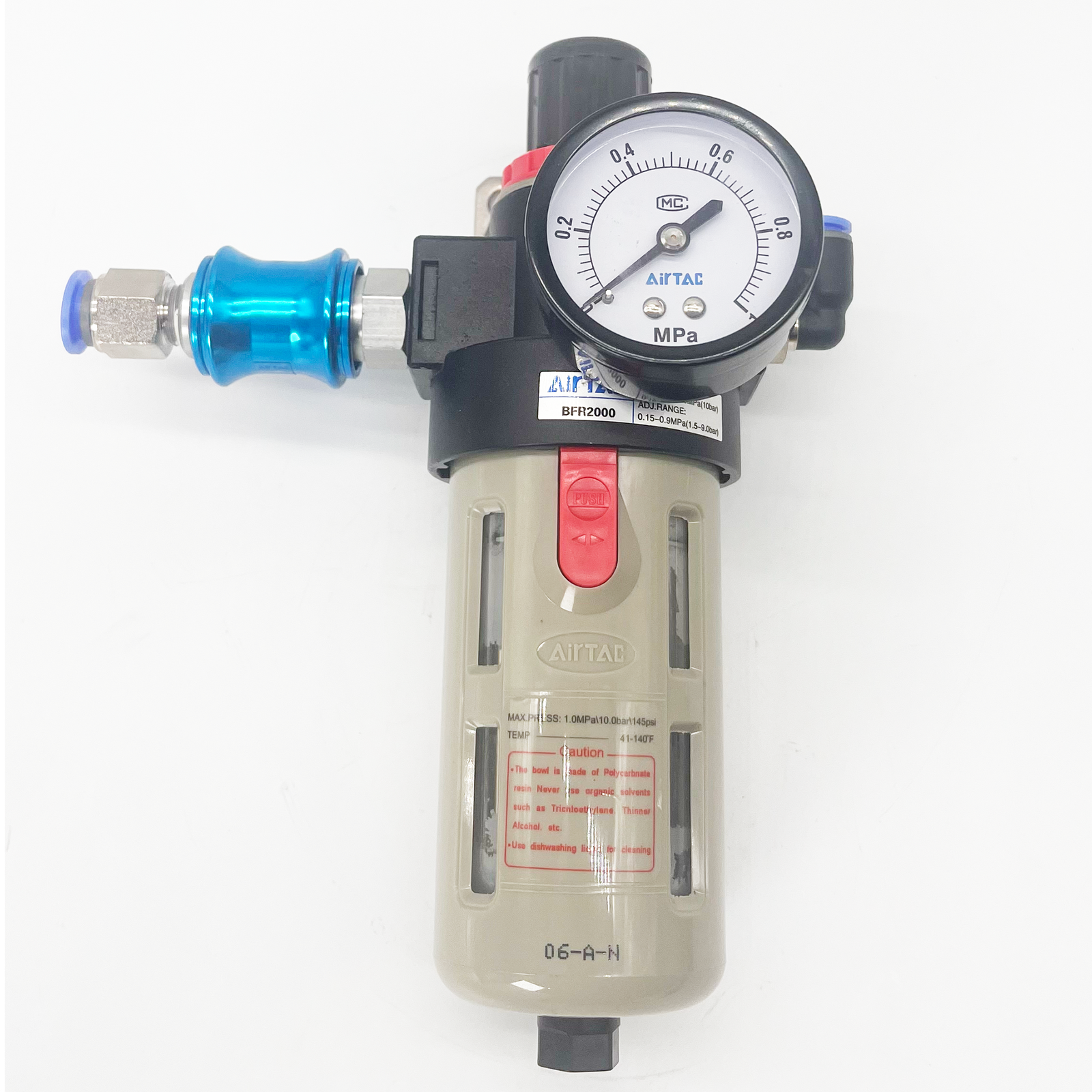

The Air Filter Regulator BFR-2000 is a pneumatic air preparation component designed for use with the E-CAP-STAND. It helps regulate incoming air pressure while filtering moisture and particles from the compressed air supply, supporting stable and reliable operation of pneumatic components.

This assembly includes an integrated pressure gauge for easy monitoring, an adjustment knob for setting air pressure, and push-to-connect fittings for convenient air line installation. The filter bowl allows operators to monitor collected moisture and drain it as needed during maintenance.

Key Features

Air Pressure Regulation
Allows controlled adjustment of compressed air pressure for consistent pneumatic operation.

Integrated Pressure Gauge
Front-mounted gauge provides clear pressure readings in MPa for quick monitoring.

Built-In Air Filter
Helps remove moisture and particles from the compressed air supply before it reaches machine components.

Push-to-Connect Fittings
Includes air tube fittings for quick and secure pneumatic hose connection.

Mounting Bracket Included
Comes with a bracket for secure installation on compatible equipment.

Designed for E-CAP-STAND
Direct replacement air filter regulator assembly for the E-CAP-STAND system.

Applications

• Pneumatic air regulation
• Packaging equipment air systems
• Cap stand operation
• Compressed air filtering and pressure control
• Machine maintenance and replacement

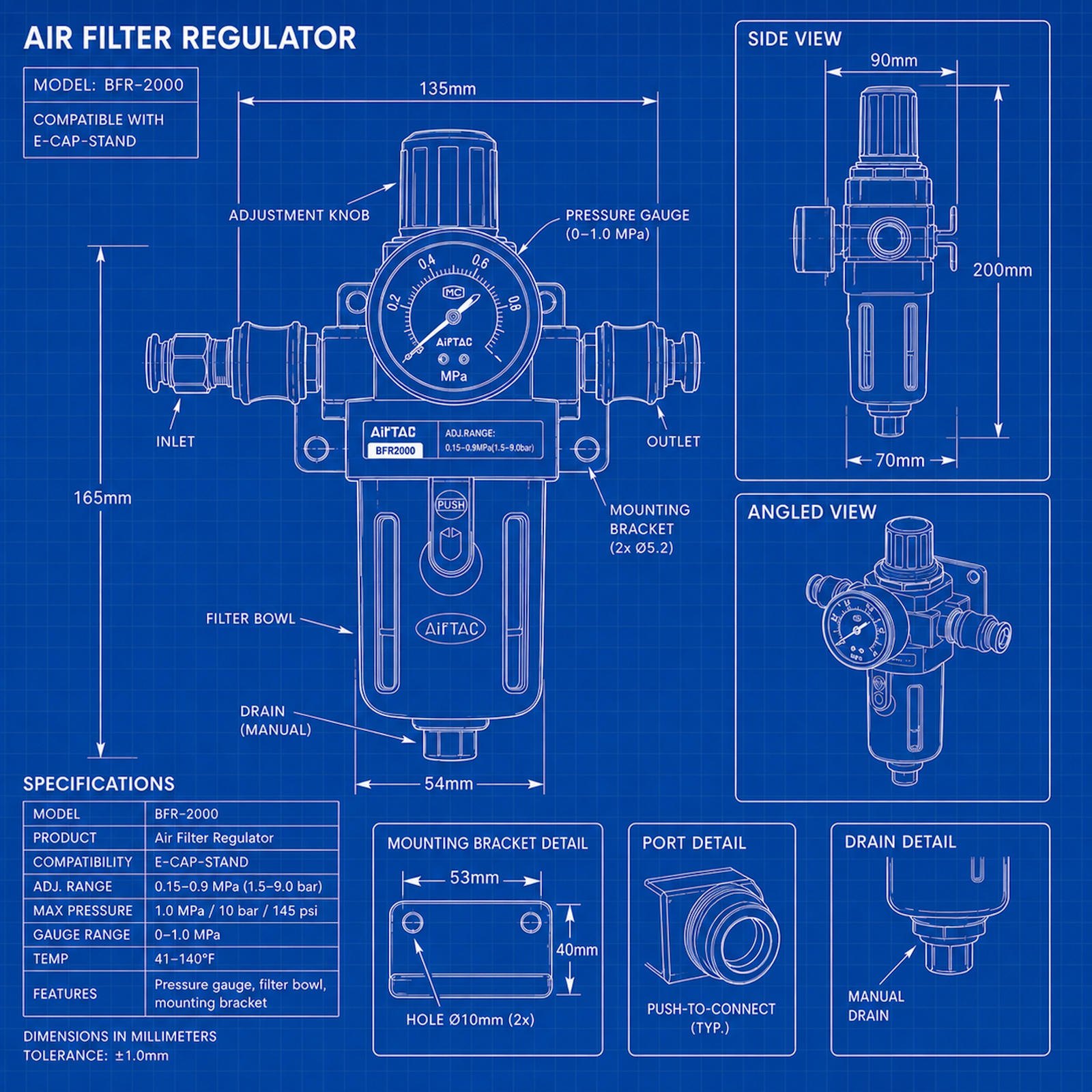

Specifications

• Product Type: Air Filter Regulator
• Brand: AirTAC
• Model: BFR-2000
• Pressure Adjustment Range: 0.15–0.9 MPa
• Pressure Adjustment Range: 1.5–9.0 bar
• Maximum Pressure: 1.0 MPa / 10 bar / 145 psi
• Gauge Range: 0–1.0 MPa
• Temperature Range: 41–140°F
• Connection Type: Push-to-connect pneumatic fittings
• Includes: Filter regulator, pressure gauge, fittings, and mounting bracket
• Function: Air filtration and pressure regulation
• Compatible With: E-CAP-STAND

The BFR-2000 Air Filter Regulator helps maintain clean, regulated compressed air for stable and efficient pneumatic performance on the E-CAP-STAND.
