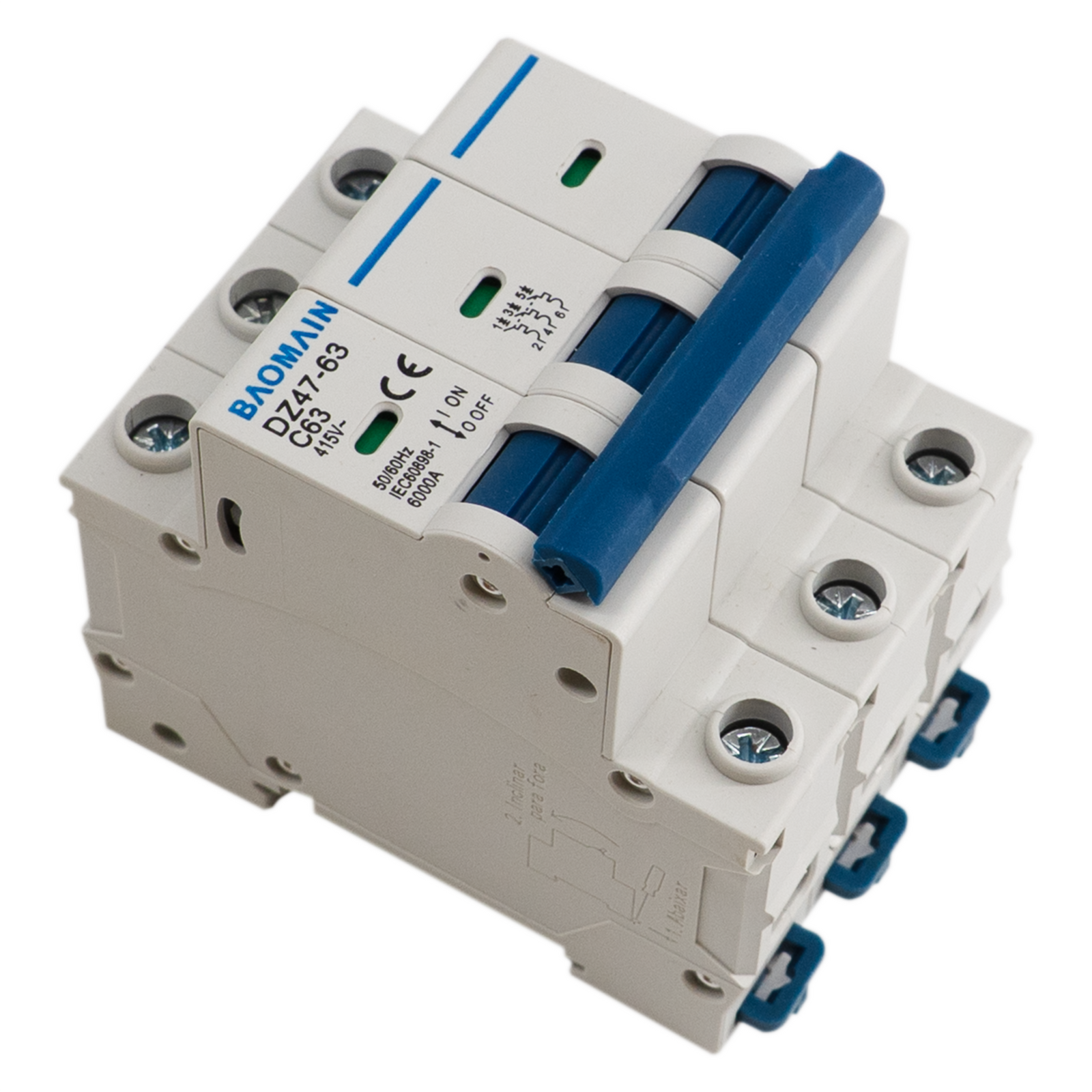

The BAOMAIN DZ47-63 C63 is a rugged and reliable 3-pole MCB designed to protect electrical installations against overload and short-circuit conditions. With a Type C tripping characteristic and rated current of 63A, it's an ideal choice for residential, commercial, and industrial setups requiring robust performance for moderate inrush current applications such as motorized equipment.
Key Features
✅ Triple-Pole Protection: Simultaneously isolates all three phases, increasing safety in multi-phase systems.
⚡ Type C Trip Curve: Trips at 5–10× the rated current, suitable for circuits with moderate inductive loads.
🔧 DIN Rail Mountable: Compact, modular 3-gang design fits standard electrical panels and enclosures.
🔄 High Interrupt Capacity: Rated for 6,000A (6kA), compliant with IEC60898-1 standards for dependable short-circuit protection.
🔍 Visual Status Window: Clear ON/OFF indicator for fast troubleshooting and operation checks.
🧰 Built-in Thermal & Magnetic Tripping Mechanisms: Dual safety mechanisms for overload and instantaneous faults.
Specifications
The breaker is rated for 63 amps of current, providing solid protection for high-load circuits.
It is designed for AC voltage systems up to 400V across three phases and 230V for single-phase installations.
The trip curve is Type C, meaning it will trip at 5 to 10 times the rated current—ideal for circuits with moderate inrush current.
It features three poles, allowing it to simultaneously disconnect all live conductors in a three-phase system.
This model operates at a frequency of 50/60Hz, compatible with global electrical standards.
The breaking capacity is 6kA (6000 amps), ensuring the breaker can safely interrupt fault currents without damage.
The unit is DIN rail mountable (35mm standard), allowing for easy installation in standard electrical distribution panels.
Terminals are screw clamp type, providing secure wiring connections with copper conductors.
The breaker body is made of flame-retardant thermoplastic for enhanced safety.
