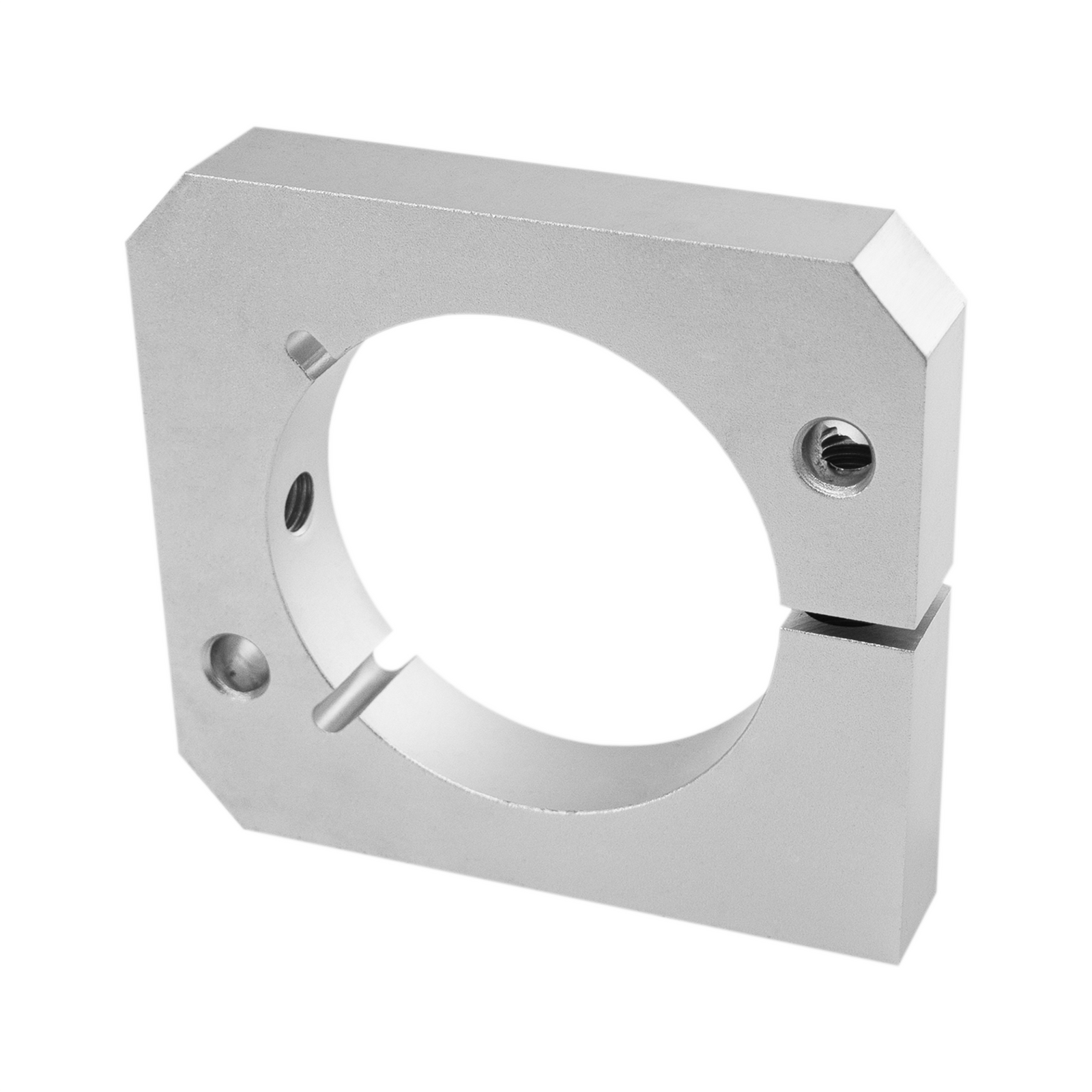

The Cylinder Body Seat is a precision-engineered component designed specifically for the JORES TECHNOLOGIES® E-FP-500 and E-FP-1000 Series tabletop piston fillers. This critical structural part serves as the mounting base for the pneumatic cylinder body, ensuring stable and accurate alignment during the filling process.

Key Features:

• Secure Cylinder Retention: Engineered to firmly hold the cylinder body in place, this seat maintains alignment and stability under operational pressure, reducing vibration and ensuring consistent volumetric dosing.

• Durable Construction: Crafted from high-grade aluminum alloy, the seat offers excellent resistance to wear, mechanical stress, and corrosion—suitable for demanding production environments.

• Precision Machining: With tight tolerances and smooth surfaces, this component ensures optimal fit with the cylinder body, preventing leakage and misalignment that could affect filling accuracy.

• Mounting Compatibility: Custom-designed for E-FP-500 and E-FP-1000 Series, it integrates seamlessly with the machine frame, aligning with existing fasteners and support structures.

• Compact Profile: The minimal, square-frame design includes machined cutouts and integrated bolt holes, supporting both performance and ease of maintenance without adding unnecessary bulk.

Applications:

• Ideal for use in food, cosmetic, pharmaceutical, and chemical filling operations using JORES TECHNOLOGIES® piston fillers.

• Supports medium- to high-viscosity product filling where precision and mechanical stability are essential.

Note: For proper functionality and machine compatibility, ensure that the Cylinder Body Seat is installed according to the manufacturer's service guidelines. This part is machine-specific and may not fit other models.
