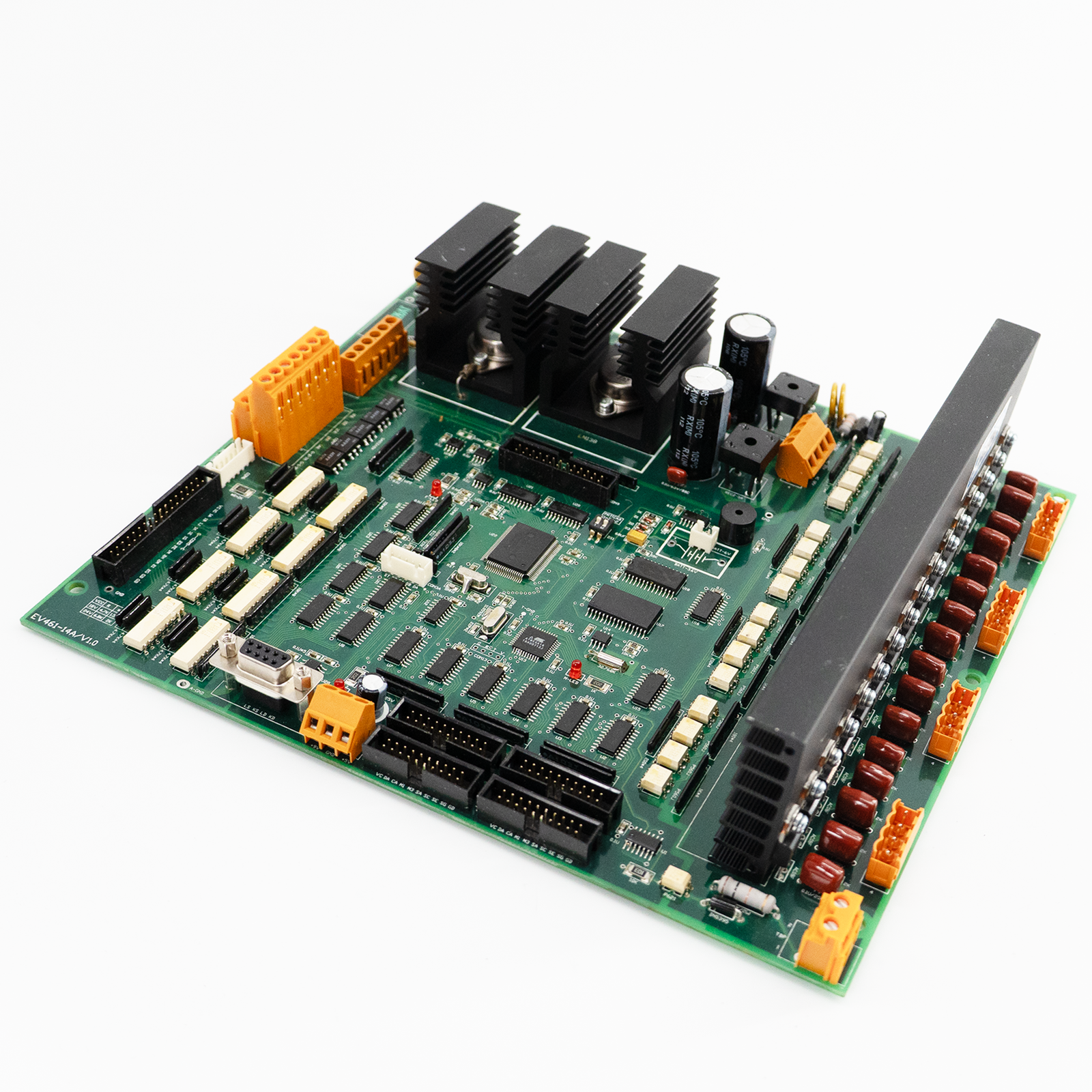

The Mother Board PCB for E-PARALLAX-1413 is a central processing and control unit specifically engineered for multi-head combination weighers. It provides a highly integrated, efficient, and reliable platform for real-time processing, sensor communication, and actuation control within the E-PARALLAX-1413 system. With advanced digital and analog circuitry, this PCB ensures precise weight computation, synchronization of multiple heads, and accurate packaging output.
Key Features
Tailored Compatibility: Designed exclusively for the E-PARALLAX-1413 Multi-Head Combination Weigher, supporting seamless integration with 14 to 20 head systems.
High-Speed Data Handling: Equipped with a central microcontroller and optimized bus architecture for high-throughput signal processing and control.
Integrated Power Control: Features multiple heat-sinked power transistors and voltage regulation stages for dependable operation under continuous use.
Expandable I/O: Multiple input/output headers to interface with load cells, stepper motors, sensors, and other peripheral modules.
Component Highlights
Microcontroller Core: High-performance microcontroller with integrated I²C, UART, and SPI communication protocols.
Power Handling: Onboard MOSFETs and voltage regulators with dedicated heat sinks for motor drive and solenoid actuation.
Capacitor Array: High-capacity electrolytic capacitors for stable voltage rail filtering and noise suppression.
Signal Conditioning: Precision op-amps, isolation components, and logic gates for clean, reliable sensor input processing.
Diagnostic LEDs: Multiple status indicators for system power, data activity, and fault conditions.
Connectors:
Ribbon-style headers for weigher head interconnects
Screw terminals and plug-in headers for power and peripheral modules
DB9 port for external communication (e.g., RS-232)
