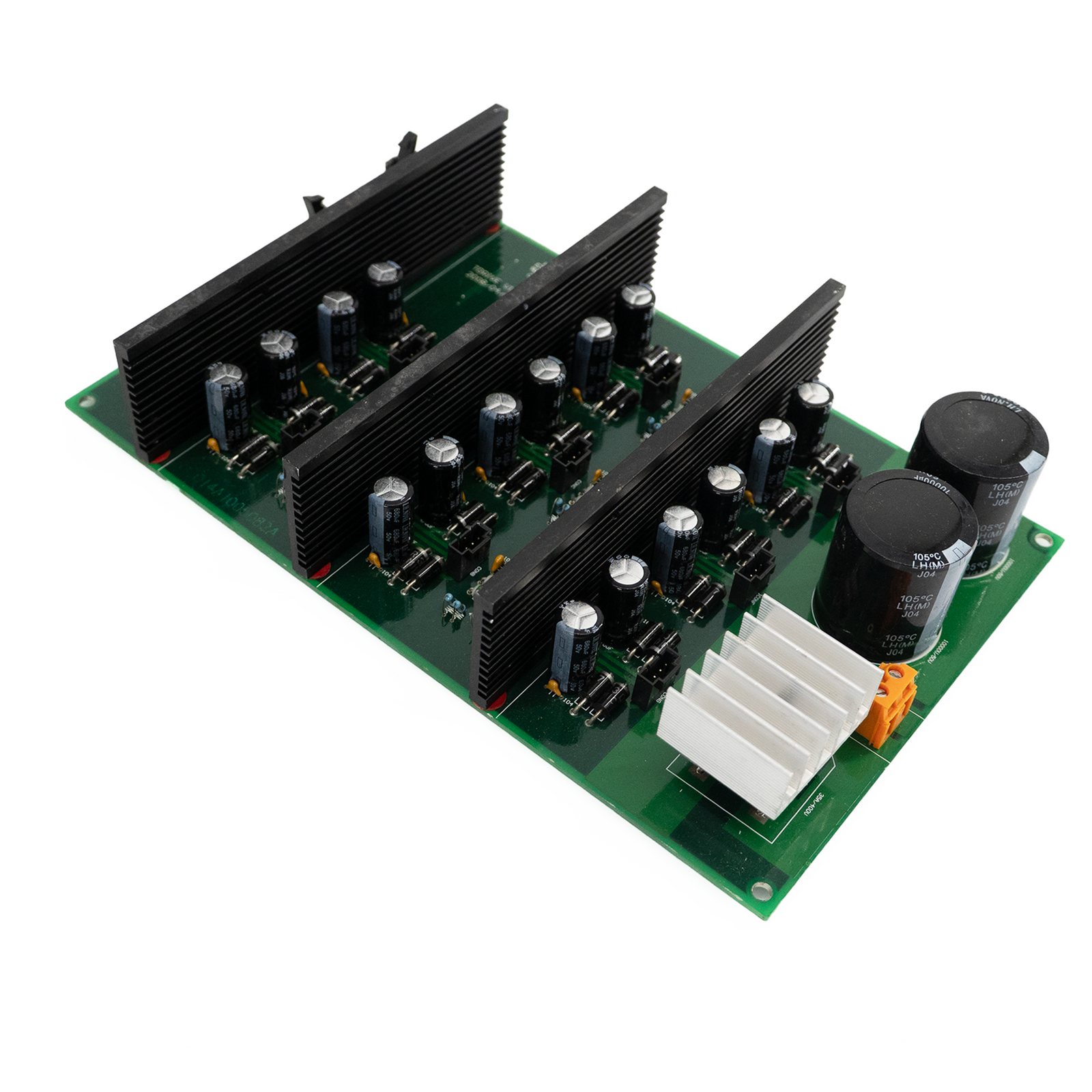

The Drive Board for E-PARALLAX-1413 is a precision-engineered power control module responsible for managing the actuation of the multi-head combination weigher's individual hoppers. Built for high-frequency operation in demanding industrial environments, this board ensures accurate timing, stable voltage delivery, and thermal protection across all actuator channels.
Key Features
Tailored Compatibility: Custom-designed for the E-PARALLAX-1413, ensuring flawless integration with its main control system and synchronized operation of up to 14 weighing heads.
High Power Delivery: Provides stable and consistent current to drive solenoids, actuators, or other electromechanical components with minimal ripple and voltage drop.
Thermal Efficiency: Equipped with large anodized black aluminum heat sinks to dissipate heat from high-current switching components.
Robust Power Filtering: Features oversized electrolytic capacitors for ripple suppression, enabling noise-free and stable actuation performance.
Component Breakdown
Power Section:
2x High-capacitance Electrolytic Capacitors for input voltage smoothing
1x Compact Aluminum Heatsink on regulator section
Isolated high-current paths to prevent crosstalk and thermal coupling
Drive Channels:
5 modular power drive banks, each protected by independent black heat sinks
High-speed switching transistors or MOSFETs per channel with supporting passives
Capacitor and diode pair for each drive loop to ensure clean energy discharge
Input & Output:
Orange terminal block for secure power input
Header pin interface for signal input from mainboard
