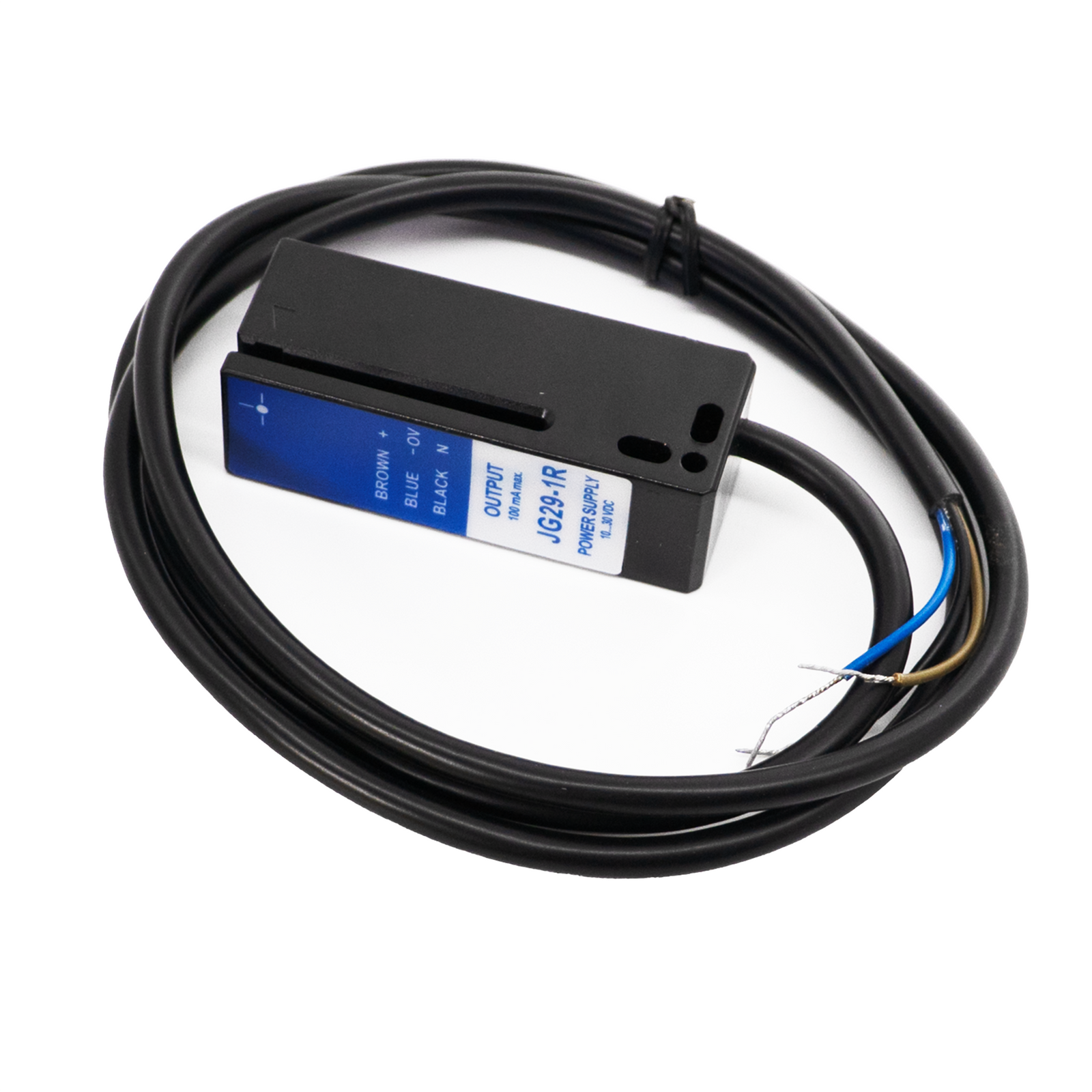

The JG29-1R Measuring Proximity Sensor is a high-precision, slot-type photoelectric sensor designed for non-contact object detection and measurement in industrial automation systems. With its compact design and reliable sensing performance, it ensures accurate object positioning, counting, and presence detection across a wide range of applications.

Key Features:

• Slot-Type Design: U-shaped configuration simplifies installation and ensures precise object interruption detection within the sensing slot.

• Reliable Sensing: Infrared beam provides accurate detection of small or fast-moving objects passing through the slot.

• NPN Output Configuration: Designed with a 3-wire NPN output for versatile integration with various control systems.

• Durable Housing: Constructed with high-impact resistant plastic for long-term durability in industrial environments.

• Wiring Identification:

  • Brown (V+): Power Supply

  • Blue (V-): Ground

  • Black (OUT): Signal Output

Specifications:

• Model: JG29-1R

• Output Type: NPN Normally Open

• Voltage Range: 5V–24V DC

• Slot Width: Approximately 5mm

• Response Time: Fast switching for high-speed applications

• Output Indicator: LED signal confirmation

• Mounting: Side-mount holes for fixed installation

Applications:

• Object presence detection on conveyors

• Label or edge detection in packaging systems

• Counting parts or products

• Position verification in automated assemblies
