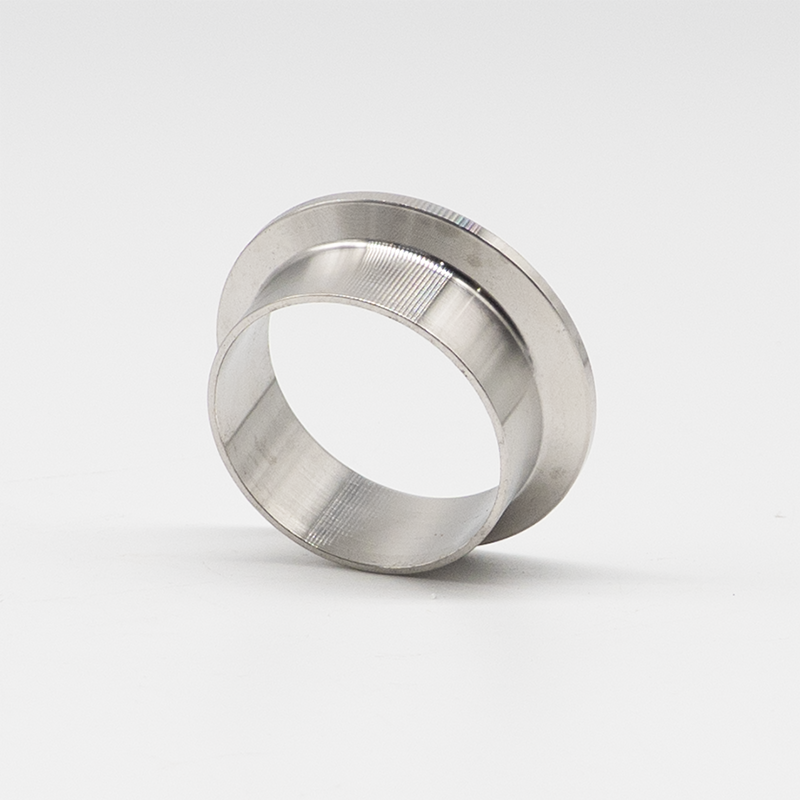

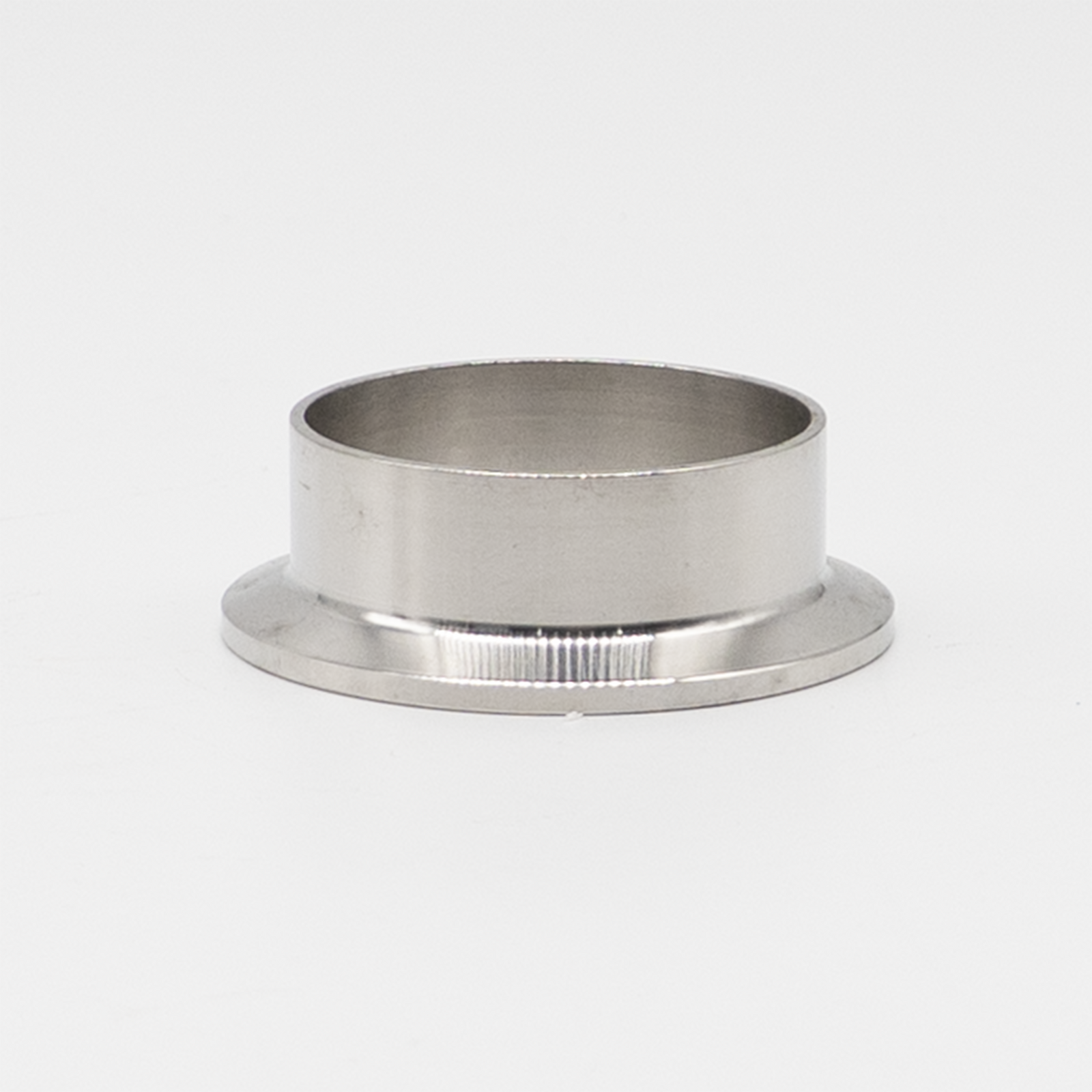

The Stainless Steel 2″ Sanitary Flange × 2″ Weld End, SS316 is a precision-machined connection component designed for hygienic fluid handling applications in piston filler systems. This flange provides a reliable transition between a removable sanitary connection and a permanent welded joint, making it ideal for product contact areas that require frequent cleaning and secure installation.
One side of the flange features a 2″ sanitary (Tri-Clamp) connection, allowing quick disassembly using a standard sanitary clamp and gasket. The opposite side is a 2″ weld end, designed to be permanently welded to stainless steel piping, manifolds, or directly to the piston filler cylinder. This configuration supports sanitary design standards while maintaining a strong, leak-resistant connection.
Manufactured from SS316 stainless steel, the flange offers excellent resistance to chemicals, cleaning agents, and high-temperature washdown environments, making it suitable for food, beverage, pharmaceutical, and cosmetic filling applications.
Key Features
2″ sanitary (Tri-Clamp) connection for quick, tool-free disassembly
2″ weld end for permanent, secure installation
Designed specifically for piston filler series
Precision-machined for proper alignment and sealing
Smooth internal surface to support hygienic product flow
Suitable for clean-in-place (CIP) and washdown environments
Applications
Piston filling machines
Liquid and semi-liquid product transfer
Food, beverage, cosmetic, and pharmaceutical processing
Sanitary piping and filler manifolds
Specifications
Connection Type: 2″ Sanitary (Tri-Clamp) × 2″ Weld End
Material: Stainless Steel 316 (SS316)
Component Type: Sanitary flange / weld stub
Finish: Machined stainless steel (as shown)
Function: Sanitary process connection and transition
Included Items: Flange only (clamp and gasket not included)
The 2″ Sanitary Flange × 2″ Weld End, SS316 is a dependable, hygienic connection solution that supports efficient cleaning, secure installation, and long-term performance in piston filler and sanitary processing systems.
